BL04 SINGLE Impeller / SINGLE Stage Blower - 1 ½" Connections

Product Description

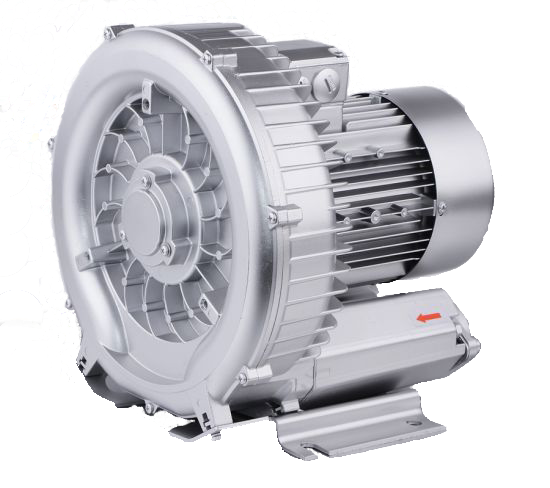

BL04 Side Channel Blower – Single Impeller / Single Stage

⚙️Continuous DutyBuilt for 24/7 operation
🌬️Vacuum & PressureExhaust or compression use
🔇Low Noise63 dB operation
🏗️Aluminium BodyFull die-cast construction

0.85 kW

  • Max Airflow: 145 m³/hr
  • Rated Vacuum: 160 mbar
  • Rated Compression: 160 mbar
  • Noise Level: 63 dB
  • Weight: 17 kg

1.3 kW

  • Max Airflow: 145 m³/hr
  • Rated Vacuum: 170 mbar
  • Rated Compression: 200 mbar
  • Noise Level: 63 dB
  • Weight: 18 kg
Connection Size1½"
Frequency50Hz / 60Hz
ConstructionDie-Cast Aluminium

Typical Applications

  • Pneumatic conveying
  • Vacuum lifting systems
  • Packaging machinery
  • Industrial drying
  • Aquaculture and aeration
  • Printing machinery
  • Medical and laboratory equipment
  • Vacuum or pressure systems

Available Accessories

Download Full Technical Data Sheet

Includes dimensional drawings, airflow curves, electrical specifications, and accessory options.

Download Data Sheet
60Hz Performance

At 60Hz, the 0.95 kW version provides 175 m³/hr airflow with 160 mbar vacuum and 160 mbar compression. The 1.5 kW version provides 175 m³/hr airflow with 210 mbar vacuum and 220 mbar compression.

Performance Information

Performance figures are based on handling air at 15°C with normal density and an absolute pressure of 1023 mbar. Manufacturing tolerance ±10%.

Need technical assistance?

Contact our technical sales team for help selecting the correct blower, filters, silencers, or accessories for your application.

Download Technical Sheet
£414.00 £473.00
